Wall-mounted Power Adapter - 36W-40W

Product Information

● Product Model:

PSYD120300

● Product Brand:

PSY

● Manufacturer:

Shenzhen Pengshengye Electronics Co., Ltd.

● Product Name:

Power adapter

● Output voltage:

12V (maximum 12V)

●Output current:

3.0A (maximum 3.0A)

● Output power:

40W (maximum 40W)

● Input voltage:

100-240V AC

● Operating frequency:

50-60Hz

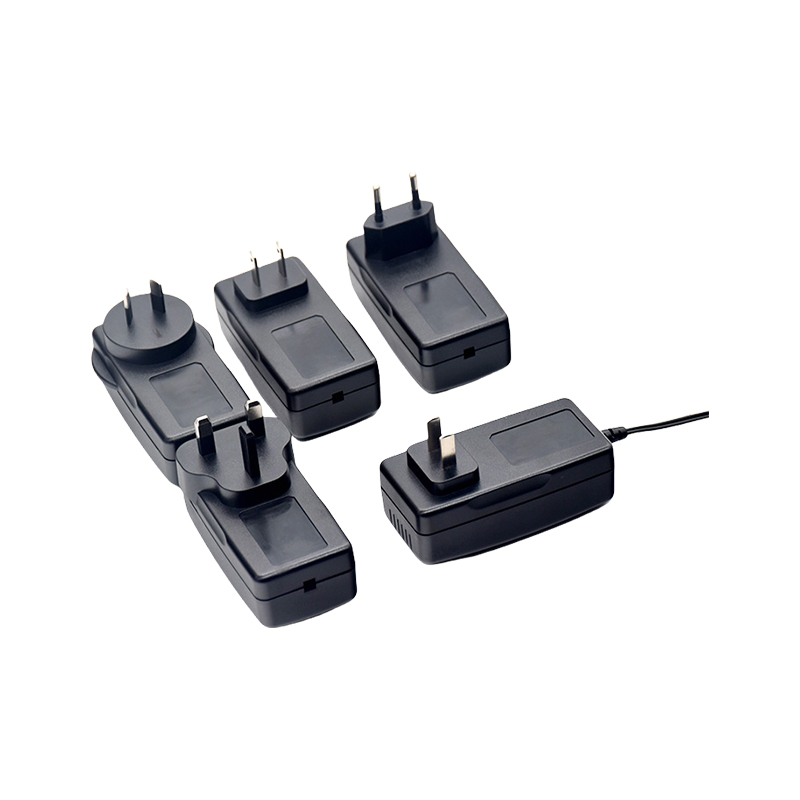

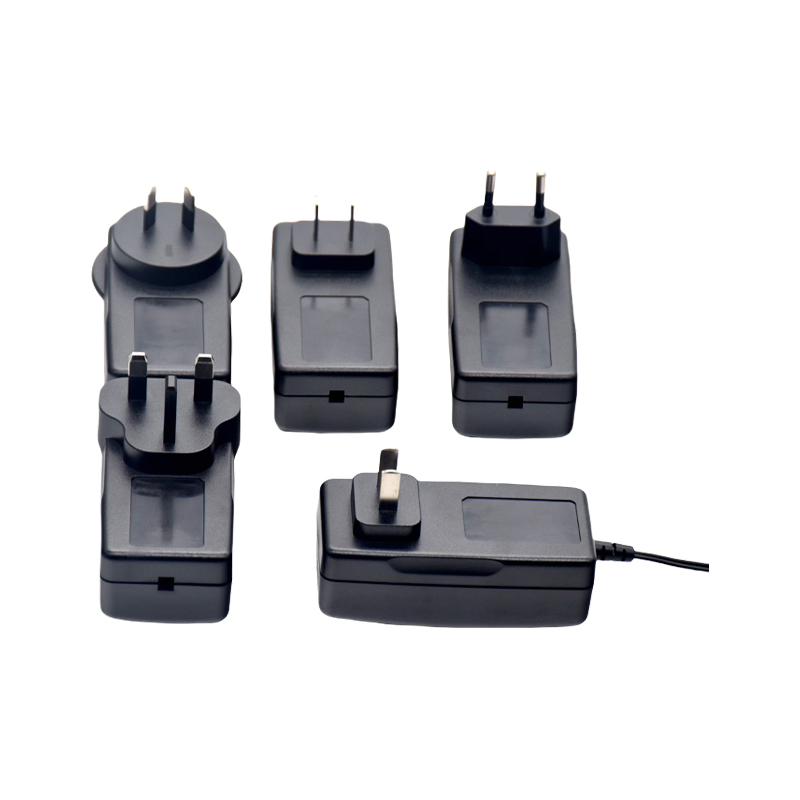

● Product Pinout:

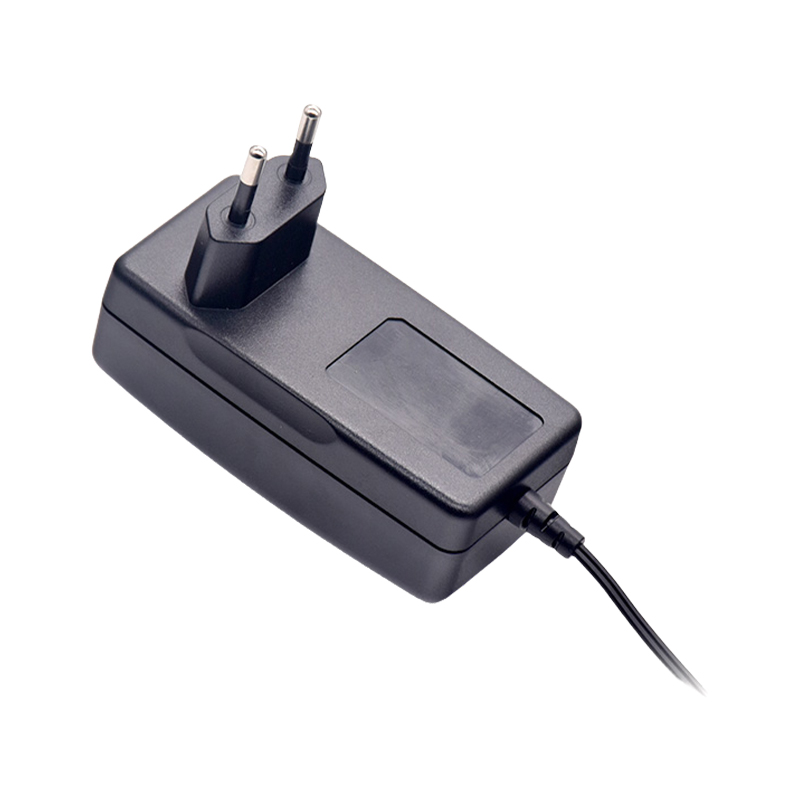

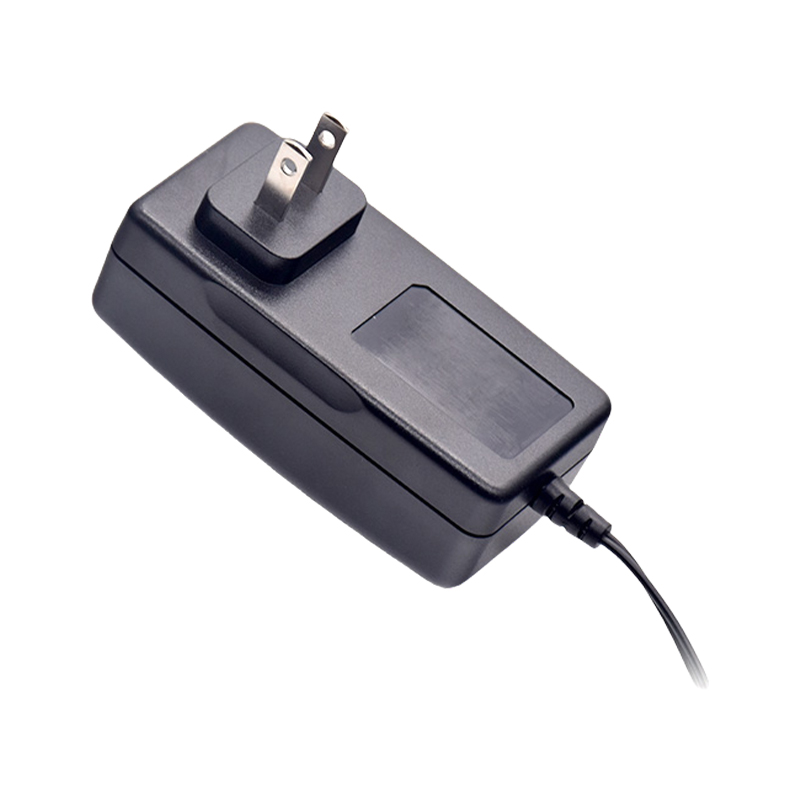

US Standard European Standard

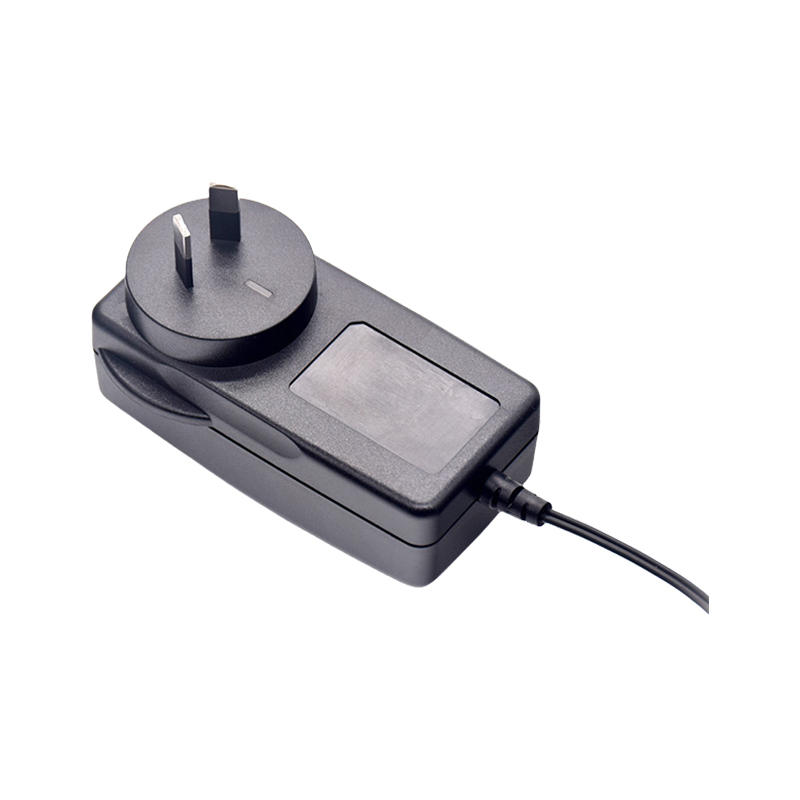

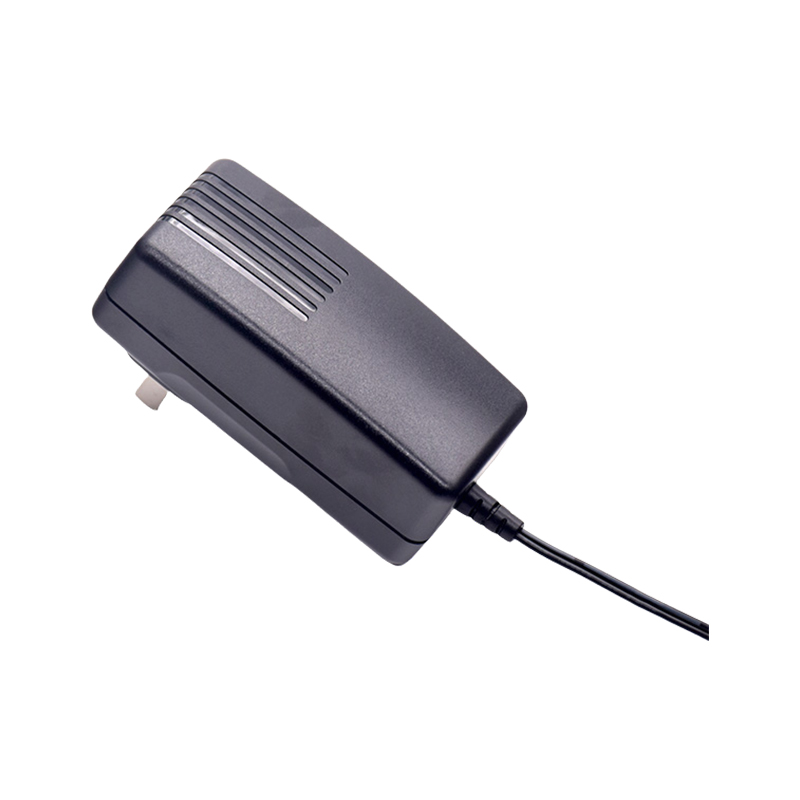

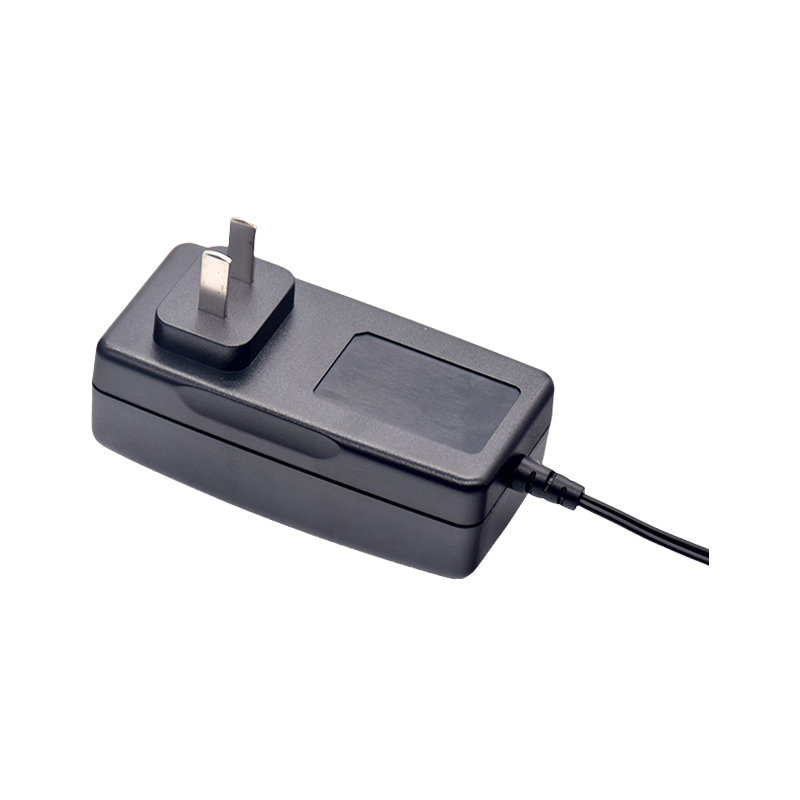

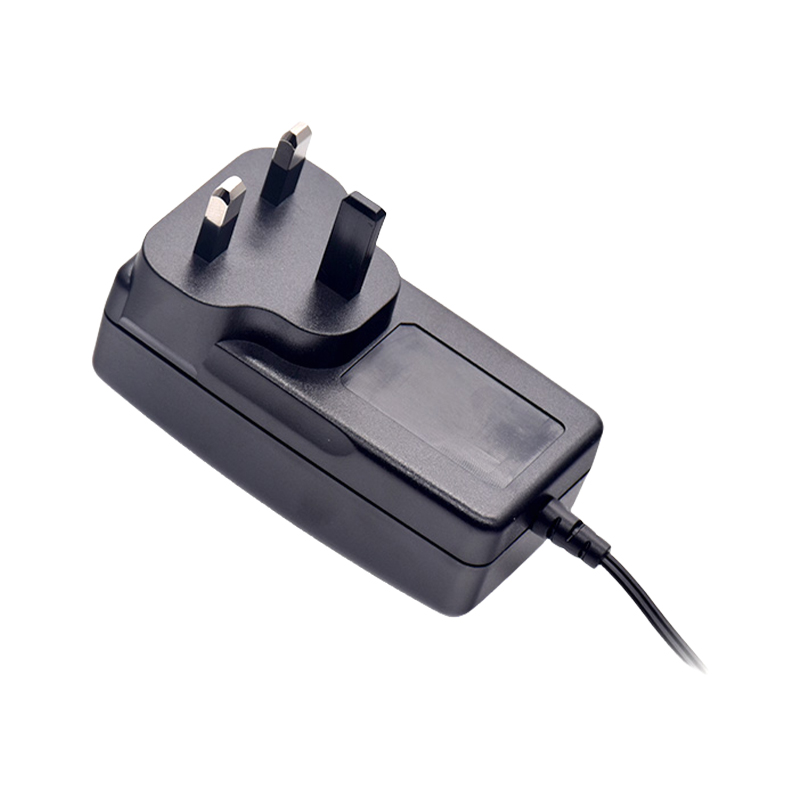

Chinese Standard UK Standard Australian Standard

● Product size:

91*41.5*31.5mm

● No-load standby power consumption:

0.1W

Product reliability

●Product protection: The 12V/3A power adapter has built-in over-current, over-voltage,
  short-circuit and over-temperature protection circuits.

●Working temperature: 0℃-40℃, full load, normal operation.

●Working humidity: 5% (0℃) ~ 95% (40℃), 72 hours, full load, normal operation.

●Wall Charger - 24W-30W。

●Insulation impedance: Input DC 500 V insulation impedance is greater than
  5MΩ between the 12V/3A power adapter AC input and DC output.

●Product temperature rise: The surface temperature is tested at rated input and rated load,
  and the shell surface temperature rise meets safety standards.

●Wire swing test: Wire pull load 200g, bend ±60°, 10 times/min,
  1000 times, the wire is not damaged after the test.

●Product aging: The product must be aged for at least 2 hours in
  an environment of 40℃±5℃ and 100% rated load.

●Mean time between failures estimation: Mean time between failures: 50,000 hours,
  at 25℃ environment and rated input and full load conditions.

Application

The products are widely used in home appliances/
beauty equipment/mobile devices/set-top boxes/
POS machines/CCTV/LED/network equipment, etc.
