Product Information | |
● Product Model: | PSYB1201500 |
● Product Brand: | PSY |
● Manufacturer: | Shenzhen Pengshengye Electronics Co., Ltd. |
● Product Name: | Power adapter |
● Output voltage: | 12V (maximum 12V) |
● Output current: | 1.5A (maximum 1.5 A) |
● Output power: | 18W (maximum 18W) |
● Input voltage: | 100-240V AC |
● Operating frequency: | 50-60Hz |

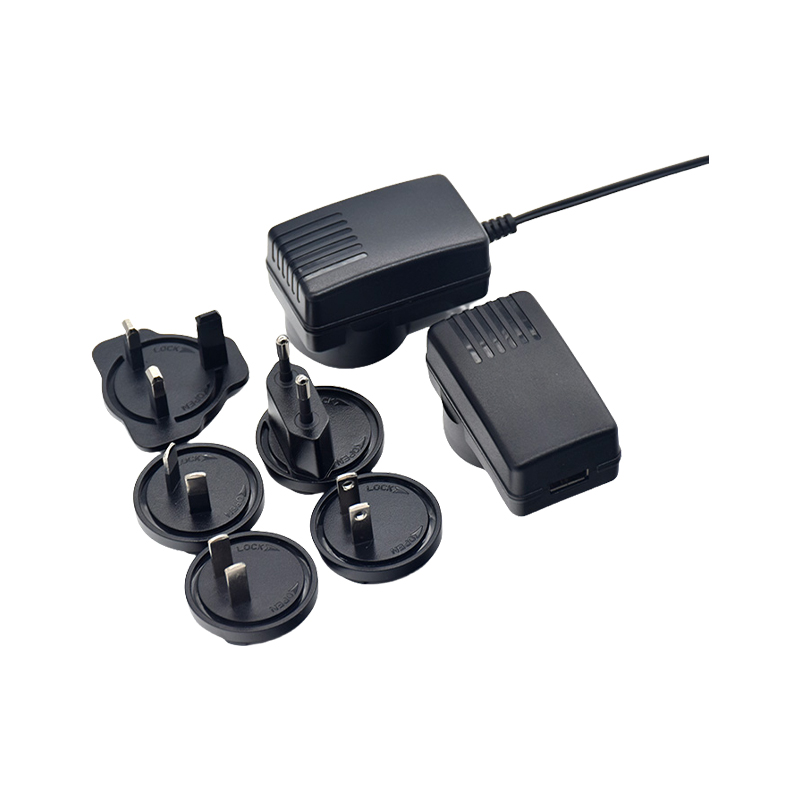

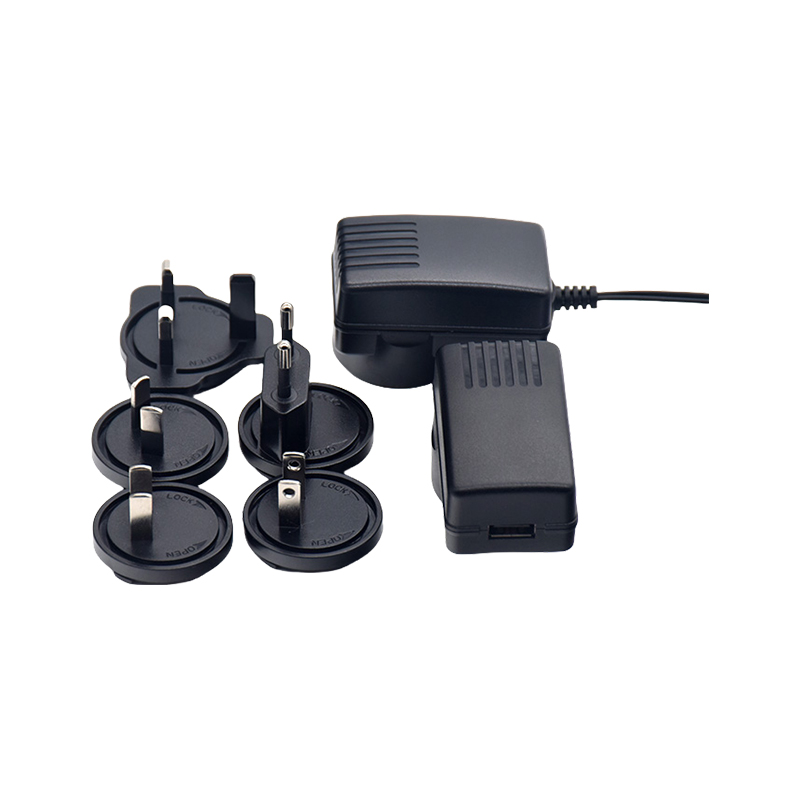

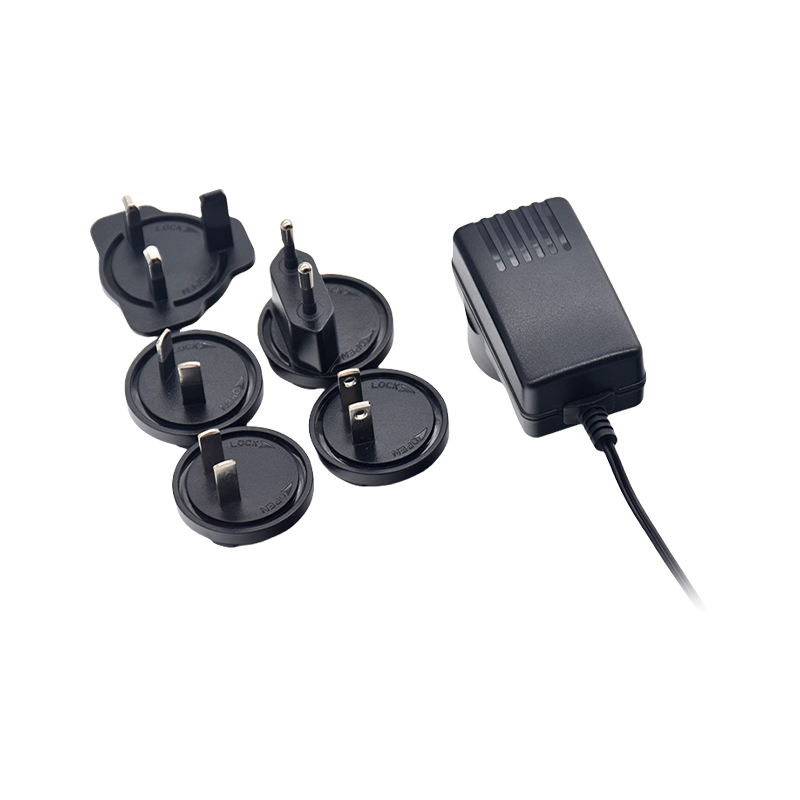

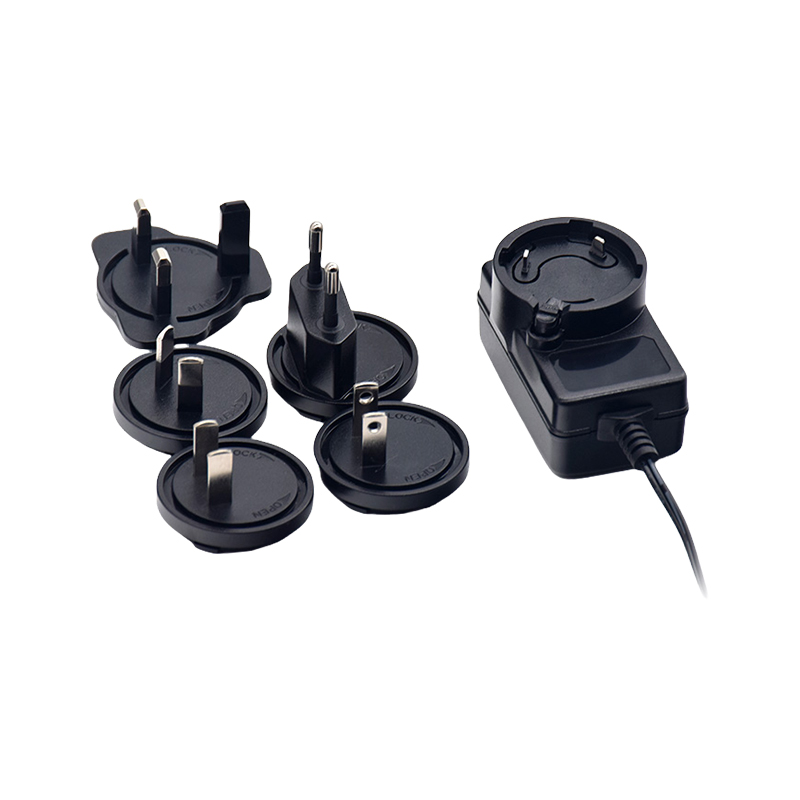

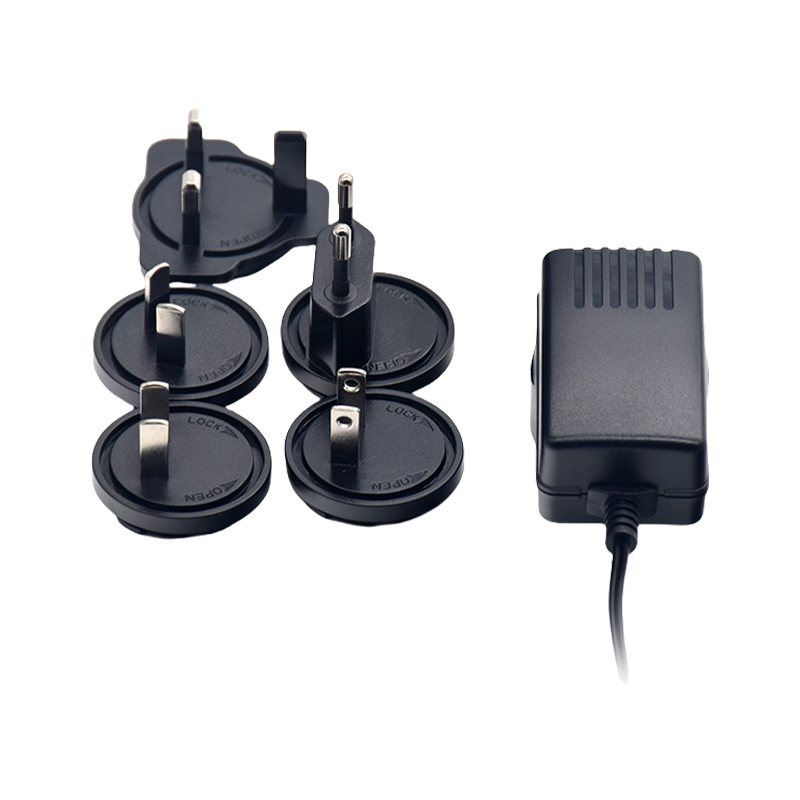

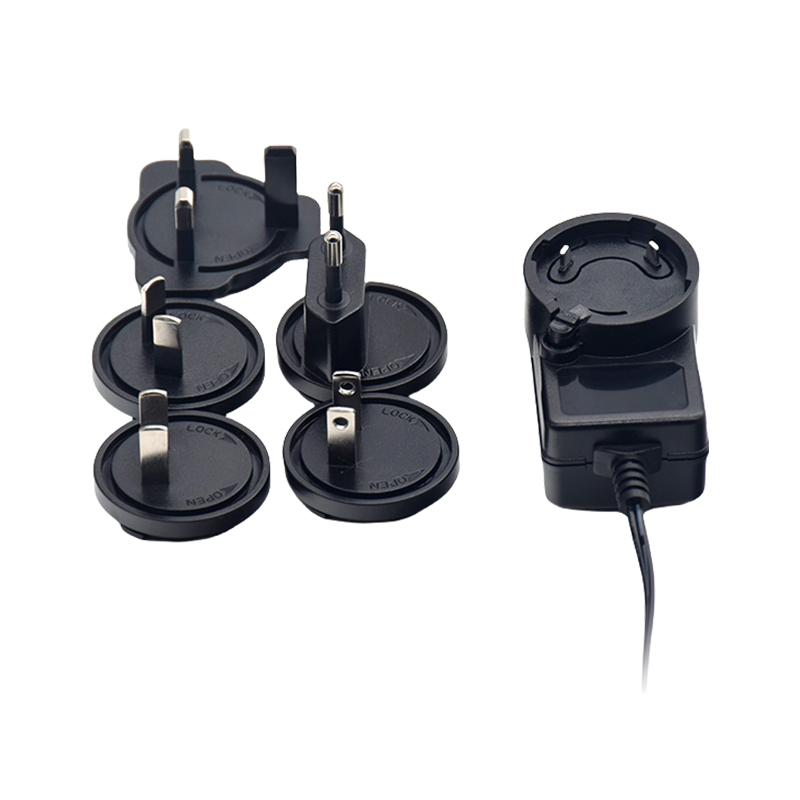

● Product Pinout: | US Standard European Standard Chinese Standard UK Standard Australian Standard |
● Product size: | 63*37*27.5mm |
● No-load standby power consumption: | 18W |
Product reliability | |
●Product protection: The 12V/1.5A power adapter has built-in over-current, over-voltage, short-circuit and over-temperature protection circuits. | |
●Working temperature: 0℃-40℃, full load, normal operation. | |
●Working humidity: 5% (0℃) ~ 95% (40℃), 72 hours, full load, normal operation. | |
●Drop test: The complete product should be used as a sample and dropped onto a hardwood surface three times. The position should be where the most unfavorable result may occur. It falls freely from a height of 100cm onto a 20mm thick wooden board. The appearance is allowed to have wear and tear but no cracks. The input plug cannot be loose or skewed, and all functions are normal. | |
●Insulation impedance: Input DC 500 V insulation impedance is greater than 5MΩ between the 12V/1.5A power adapter AC input and DC output. | |
●Product temperature rise: The surface temperature is tested at rated input and rated load, and the shell surface temperature rise meets safety standards. | |
●Wire swing test: Wire pull load 200g, bend ±60°, 10 times/min, 1000 times, the wire is not damaged after the test. | |
●Product aging: The product must be aged for at least 2 hours in an environment of 40℃±5℃ and 100% rated load. | |
●Mean time between failures estimation: Mean time between failures: 50,000 hours, at 25℃ environment and rated input and full load conditions. | |
Application | |
The products are widely used in home appliances/beauty equipment/mobile devices/set-top boxes/POS machines/CCTV/LED/network equipment, etc. | |
