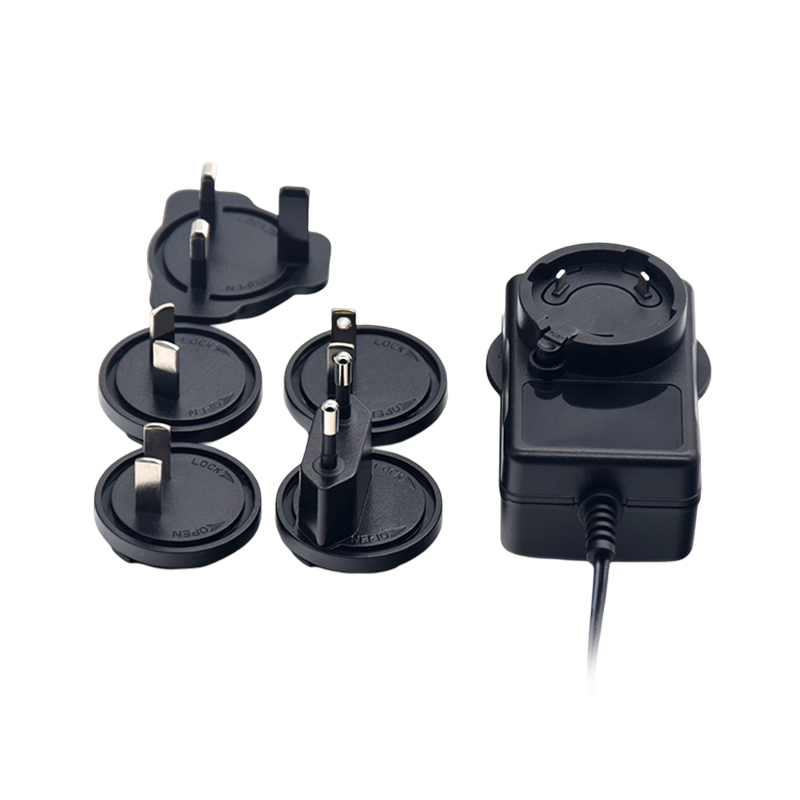

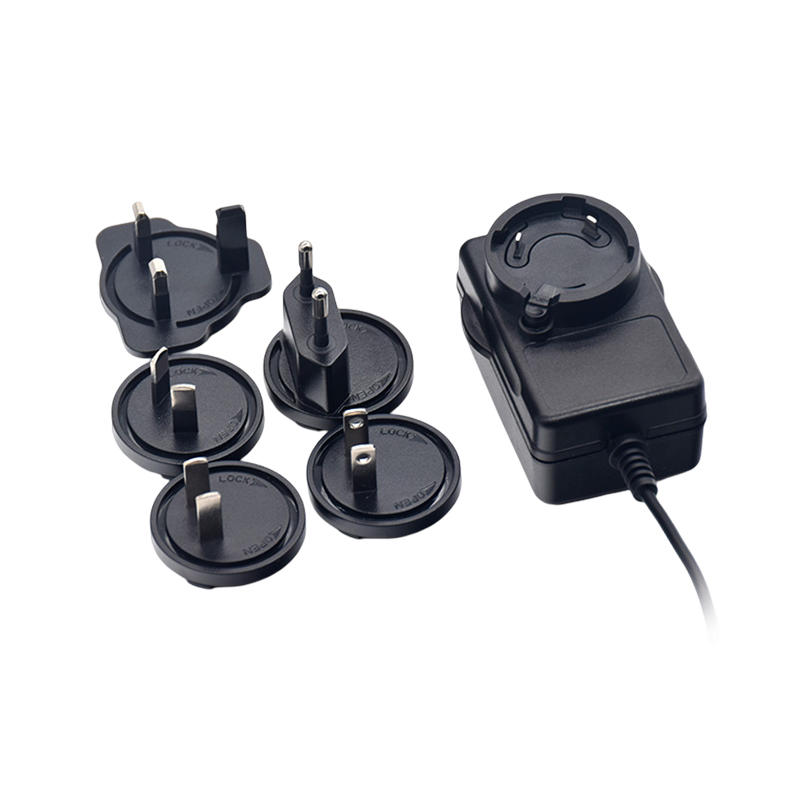

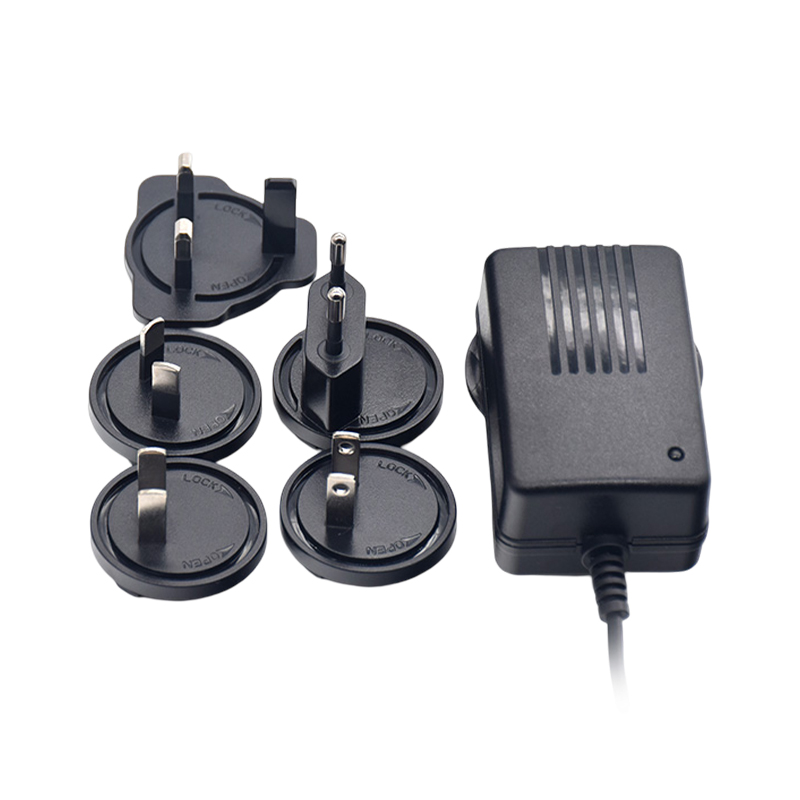

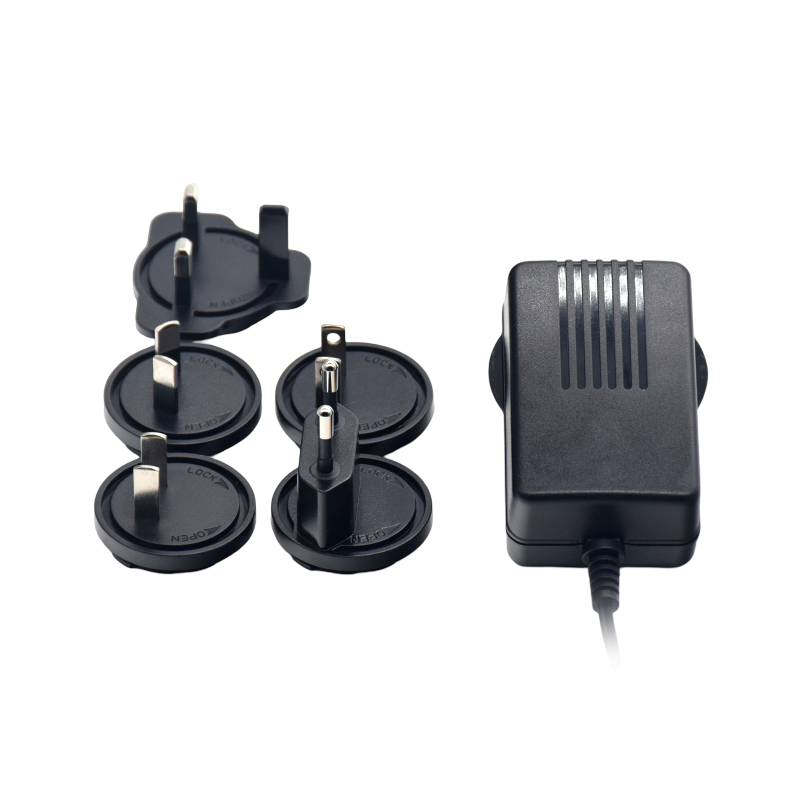

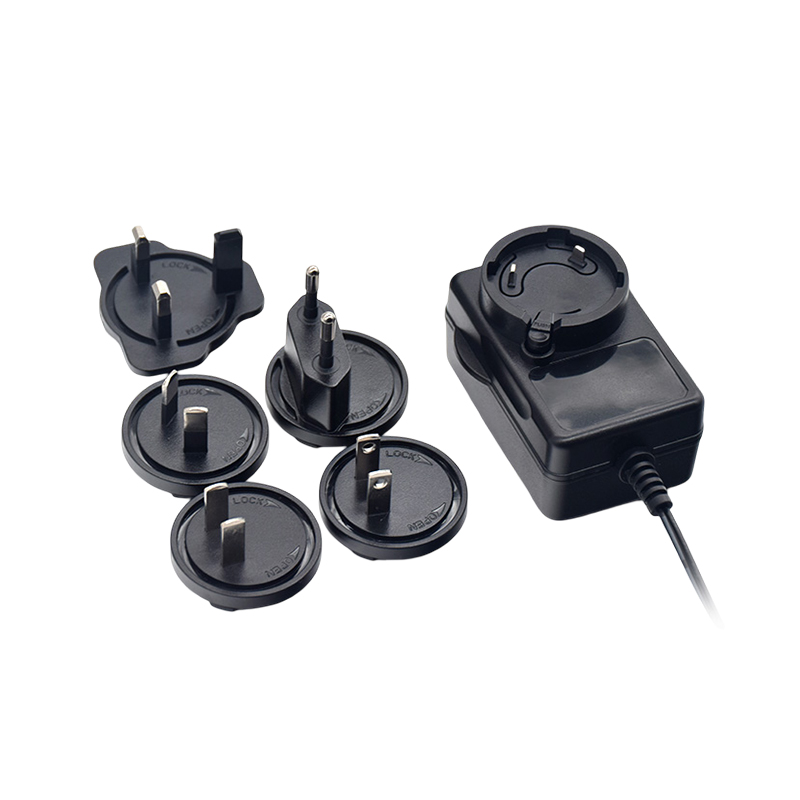

Convertible Charger-24W-30W

Product Information

● Product Model:

PSYC1202500

● Product Brand:

PSY

● Manufacturer:

Shenzhen Pengshengye Electronics Co., Ltd.

● Product Name:

Power adapter

● Output voltage:

12V (maximum 12V)

● Output current:

2.5A (maximum 2.5A)

● Output power:

30W (maximum 30W)

● Input voltage:

100-240V AC

● Operating frequency:

50-60Hz

● Product Pinout:

US Standard European Standard Chinese Standard UK Standard Australian Standard

● Product size:

71*47*31.5mm

● No-load standby power consumption:

0.1W

Product reliability

●Product protection: The 12V/2.5A power adapter has built-in over-current, over-voltage,
short-circuit and over-temperature protection circuits.

●Working temperature: 0℃-40℃, full load, normal operation.

●Working humidity: 5% (0℃) ~ 95% (40℃), 72 hours, full load, normal operation.

●Drop test:    The complete product should be used as a sample and dropped onto a hardwood surface three times.
The position should be where the most unfavorable result may occur.
It falls freely from a height of 100cm onto a 20mm thick wooden board.
The appearance is allowed to have wear and tear but no cracks.
The input plug cannot be loose or skewed, and all functions are normal.

●Insulation impedance: Input DC 500 V insulation impedance is greater
than 5MΩ between the 12V/2.5A power adapter AC input and DC output.

●Product temperature rise: The surface temperature is tested at rated input and rated load,
and the shell surface temperature rise meets safety standards.

●Wire swing test: Wire pull load 200g, bend ±60°, 10 times/min, 1000 times, the wire is not damaged after the test.

●Product aging: The product must be aged for at least 2 hours in an environment of 40℃±5℃ and 100% rated load.

●Mean time between failures estimation: Mean time between failures: 50,000 hours,
at 25℃ environment and rated input and full load conditions.

Application

The products are widely used in home appliances/
beauty equipment/mobile devices/set-top boxes/
POS machines/CCTV/LED/network equipment, etc.
