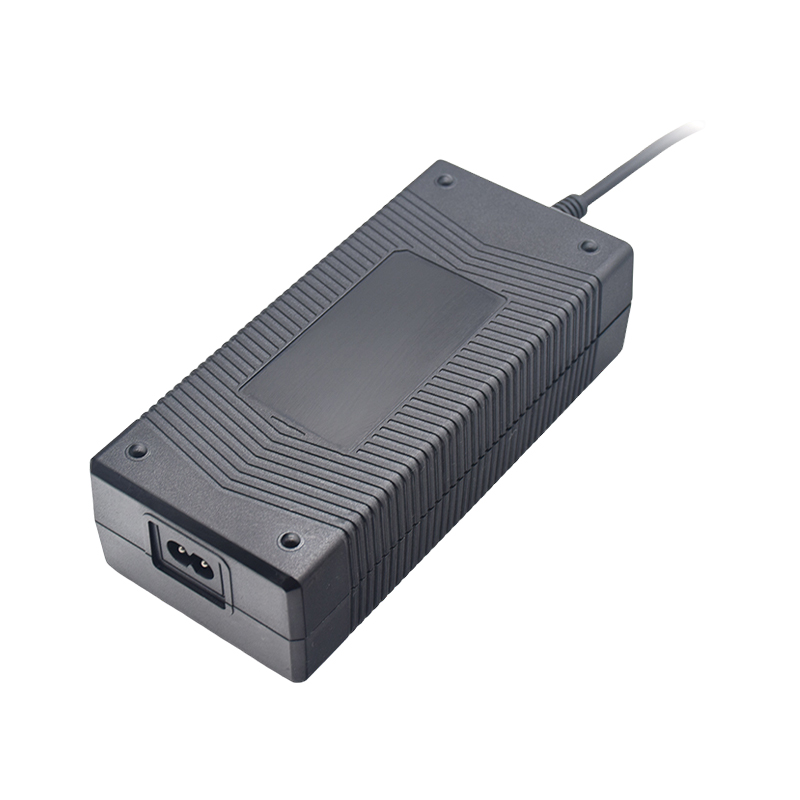

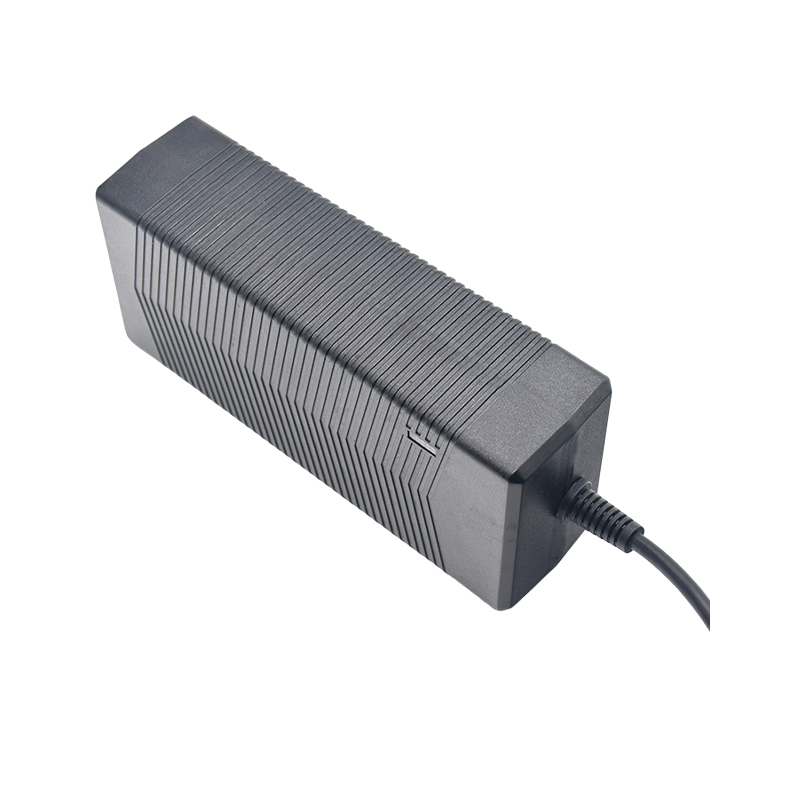

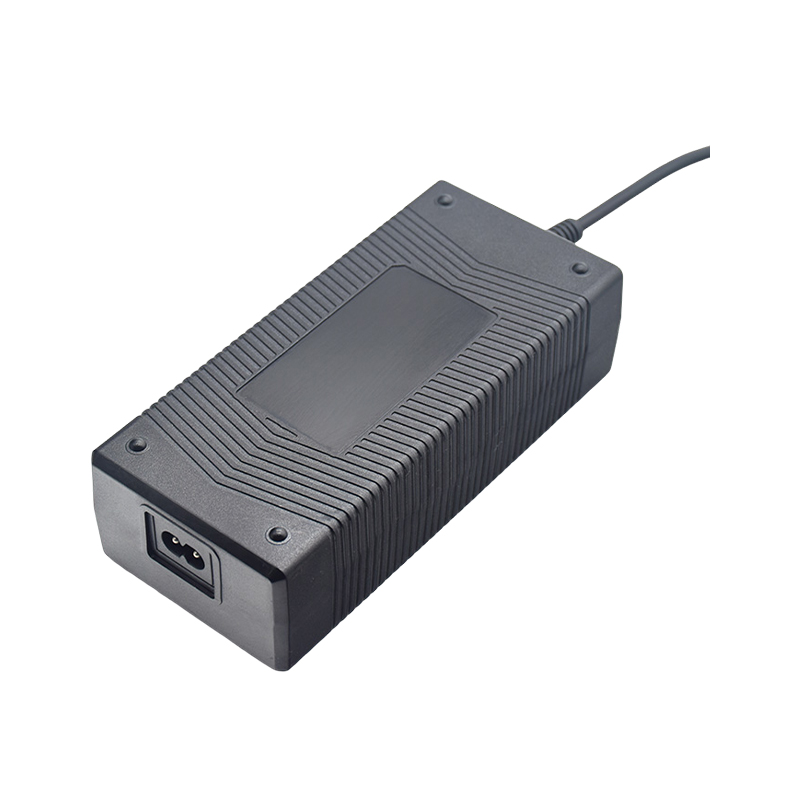

Product Information | |
● Product Model: | PSY24012000 |
● Product Brand: | PSY |
● Manufacturer: | Shenzhen Pengshengye Electronics Co., Ltd. |

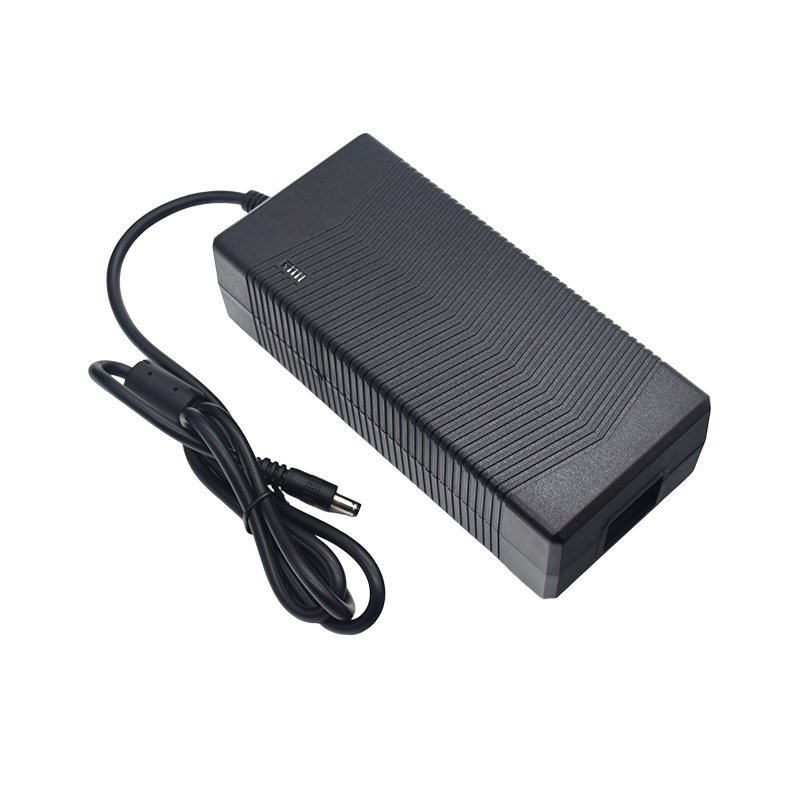

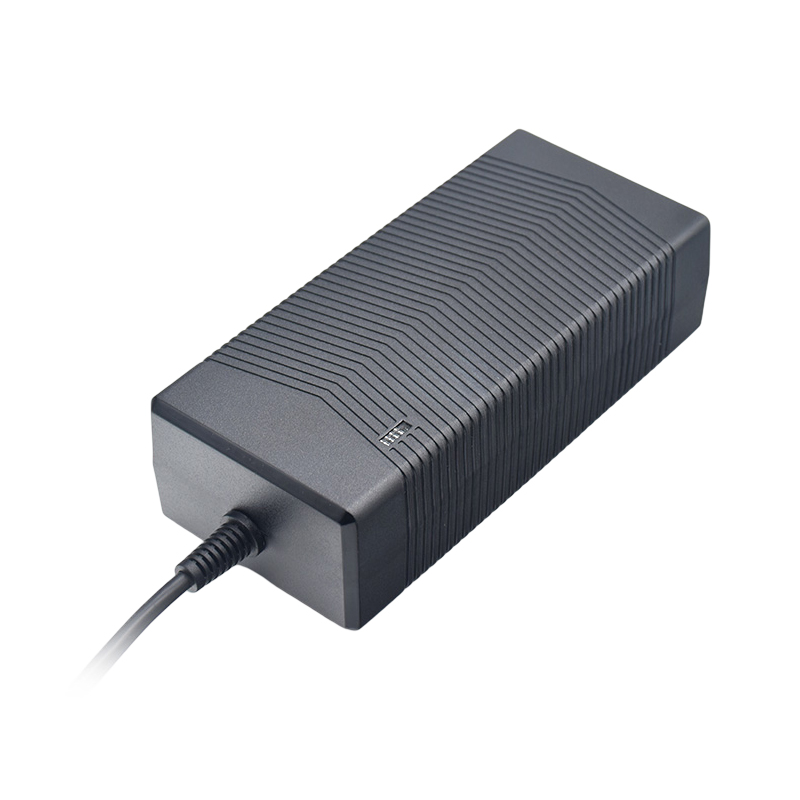

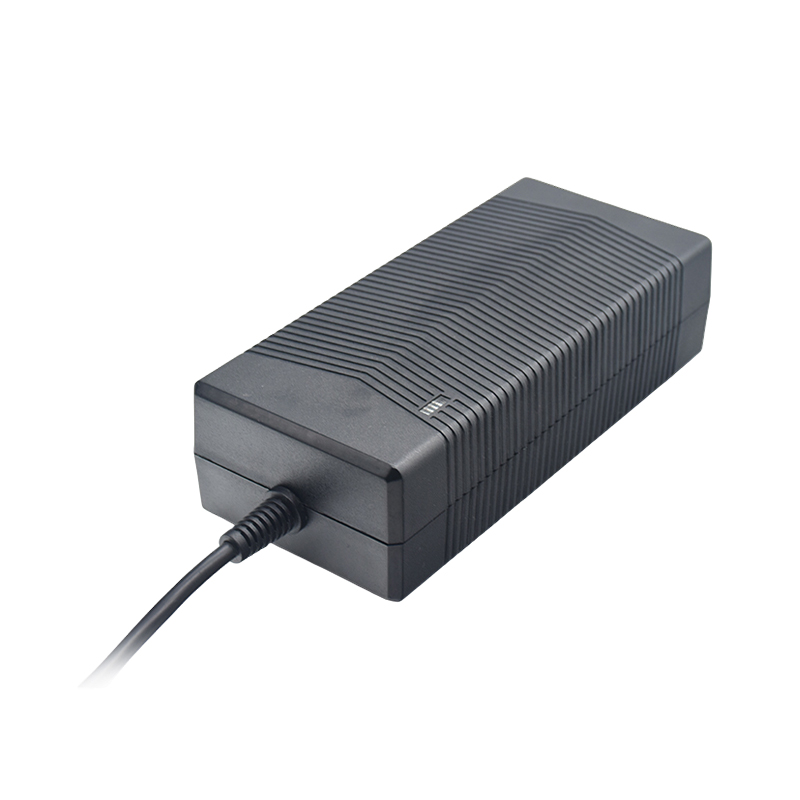

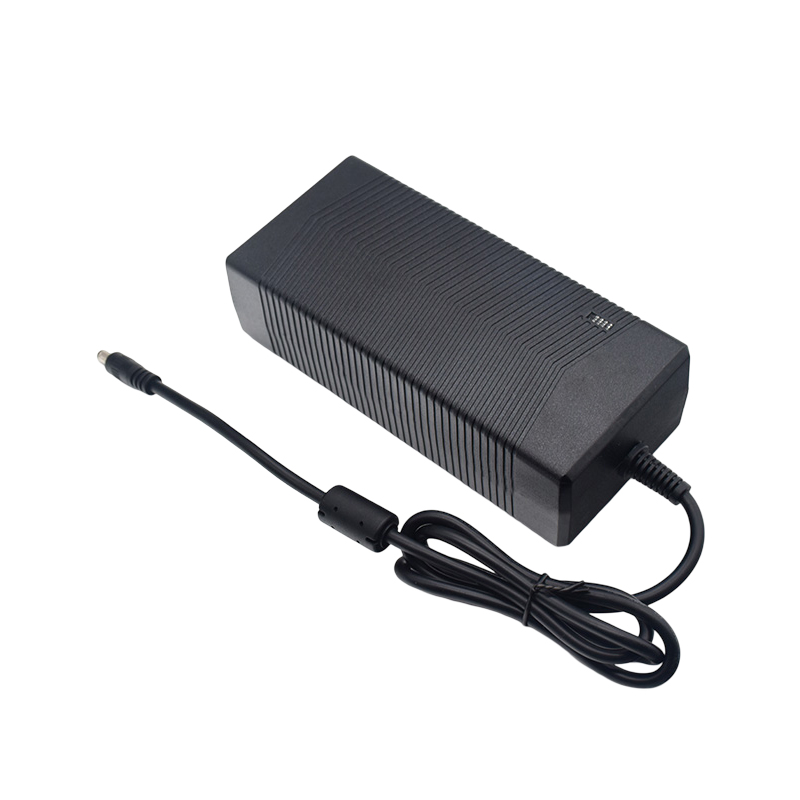

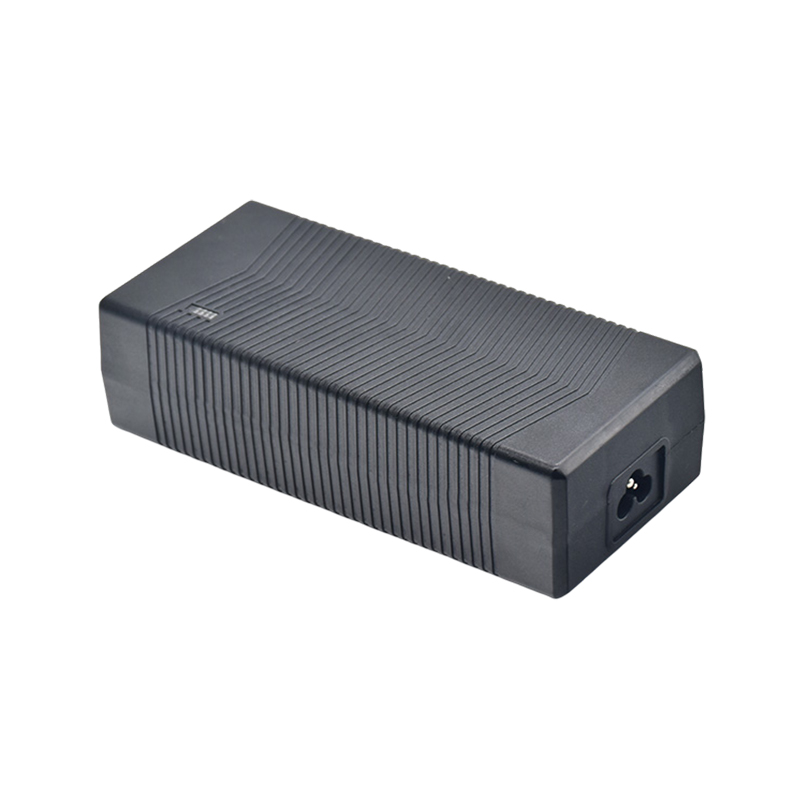

● Product Name: | Power adapter |
● Output voltage: | 24V (maximum 24V) |
● Output current: | 12A (maximum 12A) |
● Output power: | 300W (maximum 300W) |
● Input voltage: | 100-240V AC |
●Operating frequency: | 50-60Hz |

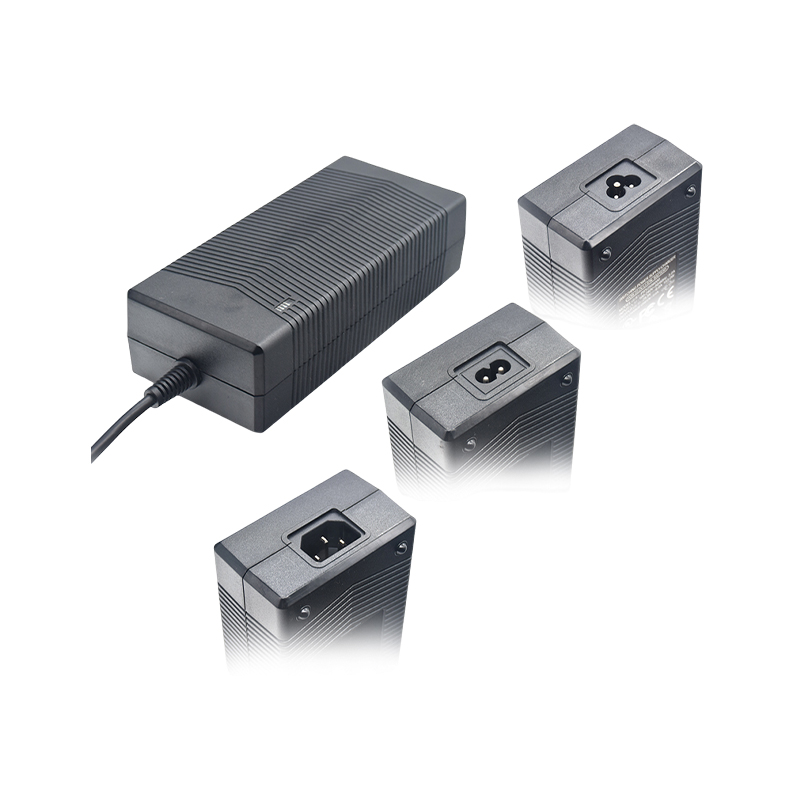

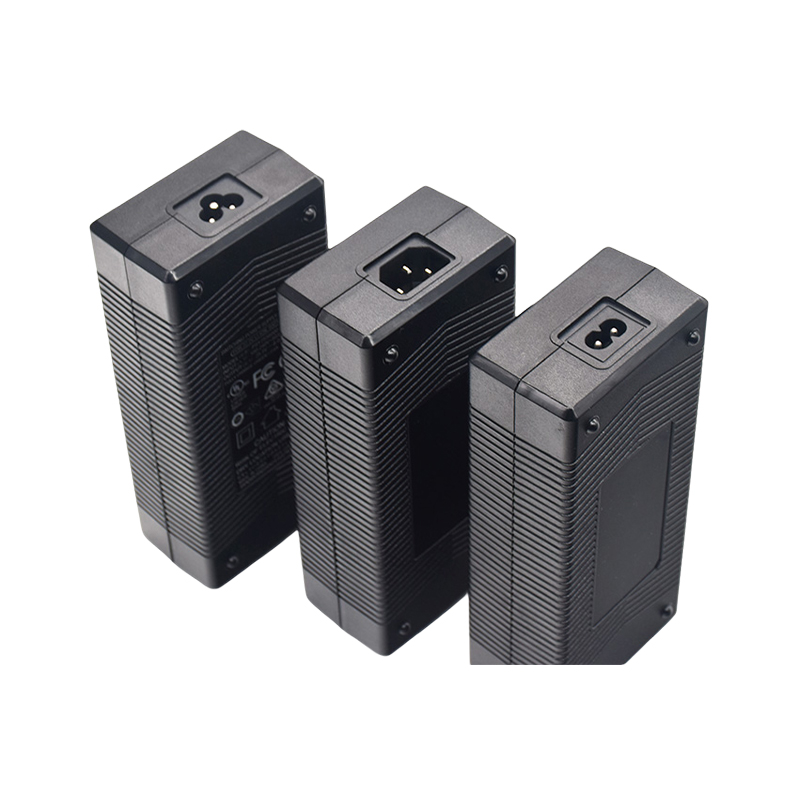

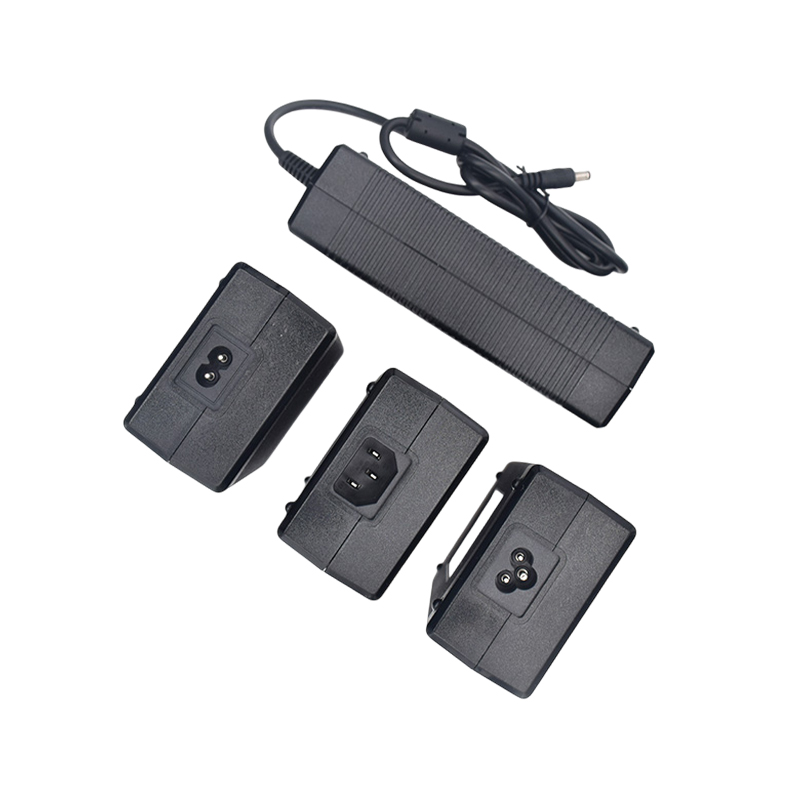

●AC line of products: | US Standard European Standard Chinese Standard UK Standard Australian Standard |

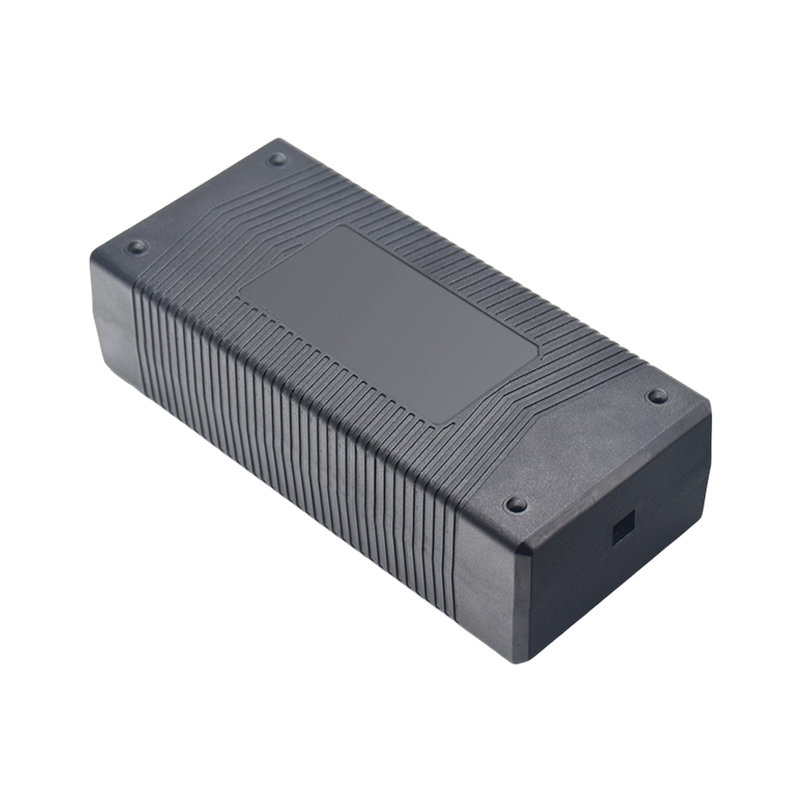

● Product size: | 176.5*80*47mm |
● No-load standby power consumption: | 0.21W |
Product reliability | |
●Product protection: The 24V/12A power adapter has built-in overcurrent, overvoltage, short circuit and overtemperature protection circuits. | |
●Working temperature: 0℃-40℃, full load, normal operation. | |
●Working humidity: 5% (0℃) ~ 95% (40℃), 72 hours, full load, normal operation. | |
●Drop test: The complete product is used as a sample and should be dropped three times onto a hardwood surface. The position should be where the most unfavorable result may be produced. It falls freely from a height of 100cm onto a 20mm thick wooden board. The appearance is allowed to have wear and tear but no cracks. The input plug cannot be loose or skewed, and all functions must be normal. | |
●Insulation resistance: The insulation resistance of DC 500 V input between the AC input and DC output of the 24V/12A power adapter is greater than 5MΩ. | |
●Product temperature rise: The surface temperature is tested at rated input and rated load, and the shell surface temperature rise meets safety standards. | |
●Wire swing test: Wire is pulled with a load of 200g, bent at ±60°, 10 times/min, 1000 times. The wire is not damaged after the test. | |
●Product aging: The product must be aged for at least 2 hours in an environment of 40℃±5℃ and 100% rated load. | |
●MTBF estimation: MTBF: 50,000 hours, at 25°C ambient temperature, rated input and full load. | |
Product Application | |
The products are widely used in home appliances/beauty equipment/mobile devices/set-top boxes/POS machines/CCTV/LED/network equipment, etc. | |
